Shanghai Sooan International Trade Co,Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | Sooannas |
| Model Number : | SAFD40-2840-3/1 |
| Certification : | CE ISO |
| Price : | CN¥190,918.00-CN¥340,925.00 |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Delivery Time : | 3 months after deposit |
| Supply Ability : | 280 Set/Sets per Year |
Product Description

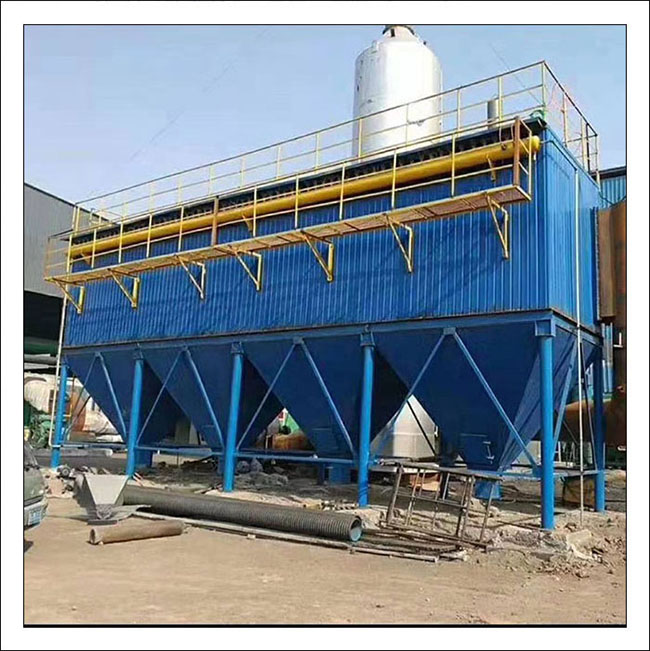

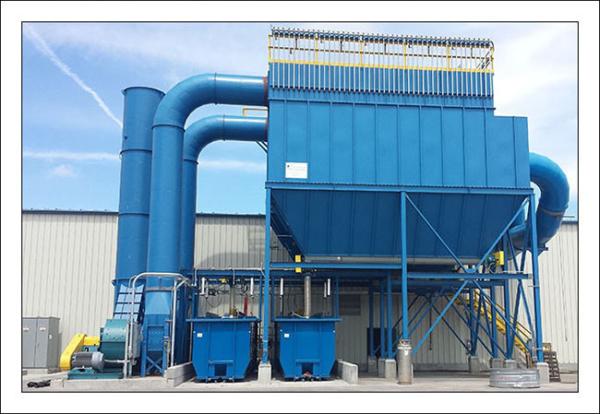

Pulse Jet Bag Filter Bag Filter Dust Collector Industrial Filter Bags
Technical Parameters for Dust Collector
| Model | SABF | SABF | SABF | SABF | SABF | SABF | SABF | SABF | SABF | ||
| Performance | 30-1330-3/1 | 40-2840-3/1 | 50-3985-3/1 | 60-3650-3/1 | 1970/3/1 | 1985/3/1 | Mar-90 | 120/3/2 | 163 | ||
| Cross-sectional area of electric field | m2 | 30 | 40 | 50 | 60 | 70 | 85 | 90 | 120 | 163 | |
| Gas handling capacity | m3/h | 67000 | 105000 | 126000 | ≤160000 | 176000 | 214000 | ≤240000 | 315000 | 411000 | |
| ~112000 | ~180000 | (dry method ) | ~252000 | ~306000 | (wet method) | ~449260 | ~587000 | ||||
| Area of dust collecting plate | m2 | 3456 | 4140 | 3650 | 4100 | 5030 | 6800 | 7263 | 10056 | ||
| Air speed of electric field | m/s | 0.6~1 | 0.7 | 0.7~1 | 0.74 | 0.7~1 | 0.7~1 | 0.74 | 0.7~1 | 0.7~1 | |
| Homopolar gap | mm | 300/390/500 | 400 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Length of each electric field | m | 2.7 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Number of electric field | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Dusty concentration of inlet | g/Nm3 | 80 | 60 | 30 | ≤80 | Dry method 80; wet method 40 | <100 | 80 | 60 | 80 | |
| Dust collecting efficiency | % | 99.8 | 99.5 | 99.5 | ≤99.5 | 99.5 | <99.5 | 99.5 | 99.5 | 99.5 | |
| Plate type | Z type | C type | C type | C type | C type | C type | C type | C type | C type | ||
| Corona wire type | RS barb type | RSbarb type | RS barb type | RS barb type | RS barb type | RS barb type | RS barb type | RS barb type | RS barb type | ||
| Silicon rectifier | Model | GGAJO2-0.4/72 | GGAJO2-0.3/72 | GGAJO2-0.6/60 | GGAJO2-0.6/72 | GGAJO2-0.6/72 | GGAJO2-0.6/72 | GGAJO2-0.6/72 | GGAJO2-0.6/72 | GGAJO2-0.6/72 | |
| GGAJO2-0.4/100 | |||||||||||
| Current | mA | 400 | 300 | 400 | 600 | 600 | 600 | 700 | 600 | 1200 | |
| Voltage | kV | 72/72/100 | 72 | 60 | 66 | 72 | 66 | 72 | 72 | 72 | |
| Dust discharge device | Rotary material feeder | Zipper machine | Zipper machine, double-flap valve | Rotary material feeder | Zipper machine, rotary material feeder | Zipper machine, rotary material feede | Zipper machine, rotary material feede | Zipper machine, rotary material feede | Zipper, rotary feeder | ||
| Total weight | t | 94.5 | 129.5 | 173.8 | 162 | 189.11 | 266.74 | 222 | 391 | 431 | |
Main Features for Dust Collector
| 1) The dust removing efficiency is over 99.9% and emission concentration is less than 30mg/Nm3. |
| 2) High density dust air below 1000mg/Nm3 is available. |
| 3) It has stable and reliable performance, high degree of automation and low investment. |
| 4) Wear resistance and Corrosion resistance |
| 5) High temperature resistance and Long operating life |
| 6) Safe and reliable operating performance stable and Small footprint and low cost |
| 7) Simple operation and Easy administrate and without operation cost |
Dust Collector/Baghouse Advantages:
|
Our Services
| We provide 12months quality warranty to make sure your machine well runs consistently. |
| 1) Pre-sale services: |
| a. Professional engineer design layout drawing for you |
| b. Recommend most suitable equipment according to your factory situation. |
| 2) During-sale services: |
| a. Pre-check and accept products before delivery |
| b. Send technicians to the jobsite for guiding the installation and adjustment |
| c. Training operators and finishing the check to satisfy factory situation. |
| 3) After-sale services: |
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible |
| b.To establish long-term friendship, we will regulary contact with our customers. |
What is a Dust Collector/Baghouse, and how does it work?
|
|
