Powder Separator Powder Magnetic Separator Cyclone Sand Powder Separator
Product Description

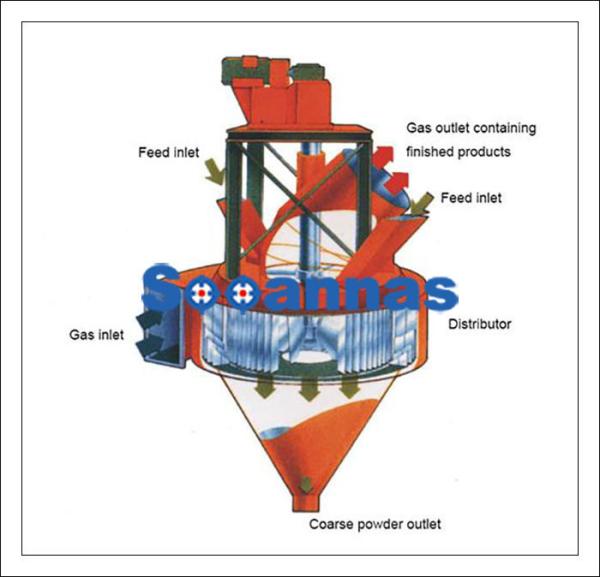

Working principle for Three-separate powder separator:
The three separate classifier often works with ball mill, forming a closed- circle production plant. It can improve ball mill capacity and get required material size. it's widely used for cement production, fly ash production, sand production and so on. More than 300mesh powder can be get.
In the classification room, influenced by strong rotational flow and tangential shearing stress, stuff is dispersed adequately andthe distributed materials get through the well defined classification zone, in the course of which effectiveness of classification can reach very high on account of stable classification condition and enlarged classification space without the interference in classification from the conventional small-size blades.
The precision fine adjustment is very convenient and easy with a large scope of adjustment, by flexible regulation of the running speed of the principal axis and the ventilation.
Main Features for Powder Separator:
| 1). The fineness can be adjusted, high powder separation efficiency, easy installation, and easy maintenance. |
| 2). Suspended decentralized election pre-separation technology create good conditions for powder. |
| 3). Level classification precision eddy current technology improve the efficiency of the separator and increase the surface area with the finished product. |
| 4). Combination closed-circuit loop, simplifying the process and reduce the investment and capacity. |
| 5). Compact structure, high efficiency and energy saving, easy adjustment, a local multi-skilling. |
Technical parameters for improved O-SEPA efficient powder classifier:
| Model | Fineness | Handle air volume | Speed | Motor power | Max capacity | Capacity |
| m³/h | r/min | kw | t/h | t/h | ||
| JBOX-Ⅰ(N250) | 45um square hole screen(0~10%) | 10000m3/h | 300~500 | 15 | 27 | 6~12 |
| JBOX-Ⅱ(N350) | 15000m3/h | 280~500 | 18.5 | 45 | 10~20 | |
| JBOX-Ⅲ(N500) | 21000m3/h | 260~450 | 22 | 60 | 15~25 | |
| JBOX-IV (N750) | 30000m3/h | 260~450 | 30 | 75 | 20~30 | |
| JBOX-V (N1000) | 45000m3/h | 240~420 | 37 | 100 | 30~45 | |
| JBOX-VI (N1250) | 60000m3/h | 240~420 | 45 | 145 | 40~55 | |
| JBOX-VII (N1500) | 75000m3/h | 220~400 | 55 | 190 | 50~70 | |
| JBOX-VIII (N2000) | 90000m3/h | 220~400 | 75 | 250 | 65~90 | |
| JBOX-IX (N2500) | 105000m3/h | 200~380 | 90 | 320 | 90~130 |
